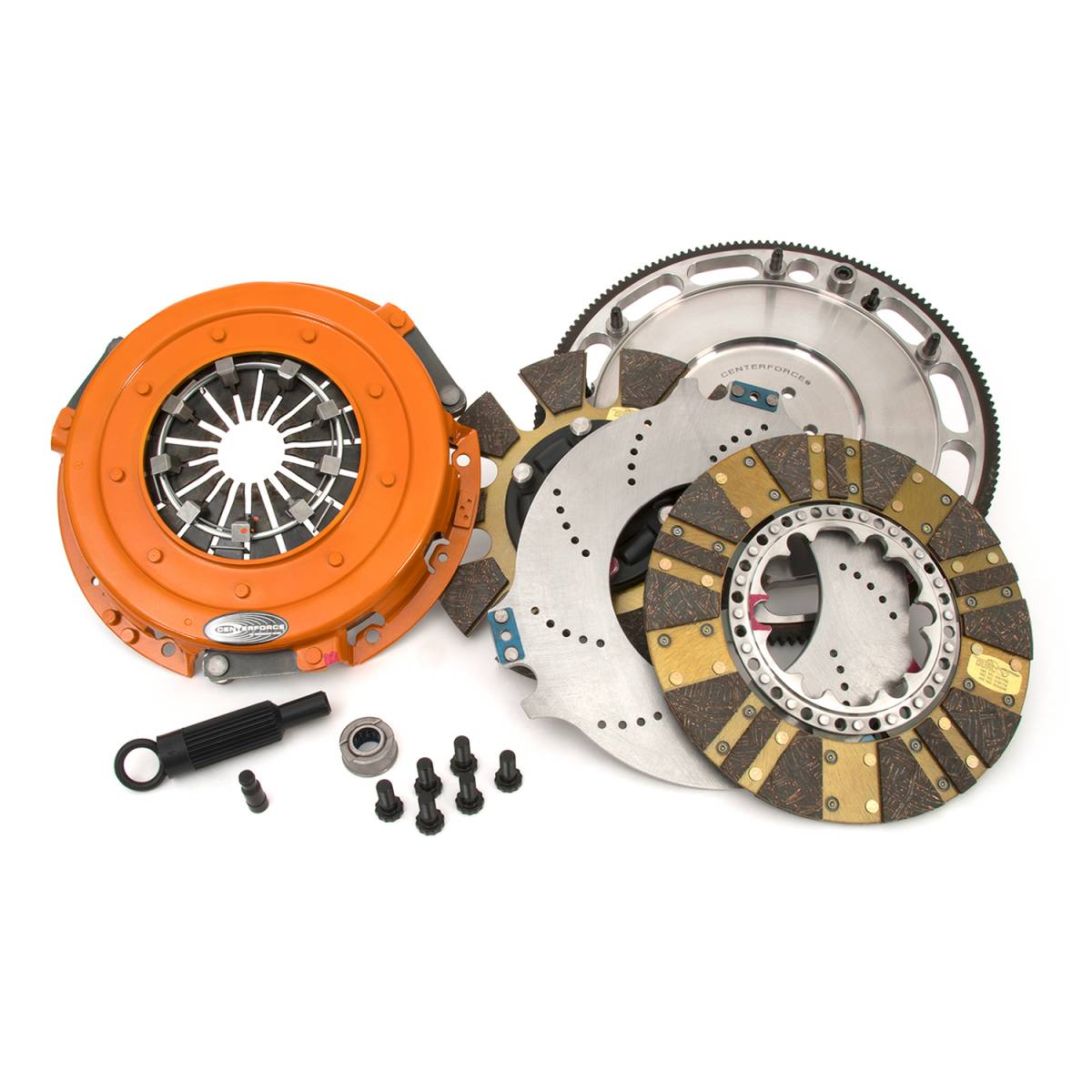

Centerforce DYAD ® DS 10.4, Multi-Disc Clutch and Flywheel Kit, 45.95 lbs, 164 Tooth Gear, 0 in/oz Internally Balanced, 6 Bolt Crank, 1300 ft/lbs Capacity, 10.4in Dia., 26-Spline, Fits Ford Mustang GT 4.6L

413114810

Verify it fits

The Centerforce® DYAD® DS (Drive System) 10.4 Inch patented multi-disc clutch offers smooth engagement, light pedal, and high-end holding capacity for engine torque levels from 500 to 1300 ft /lbs.

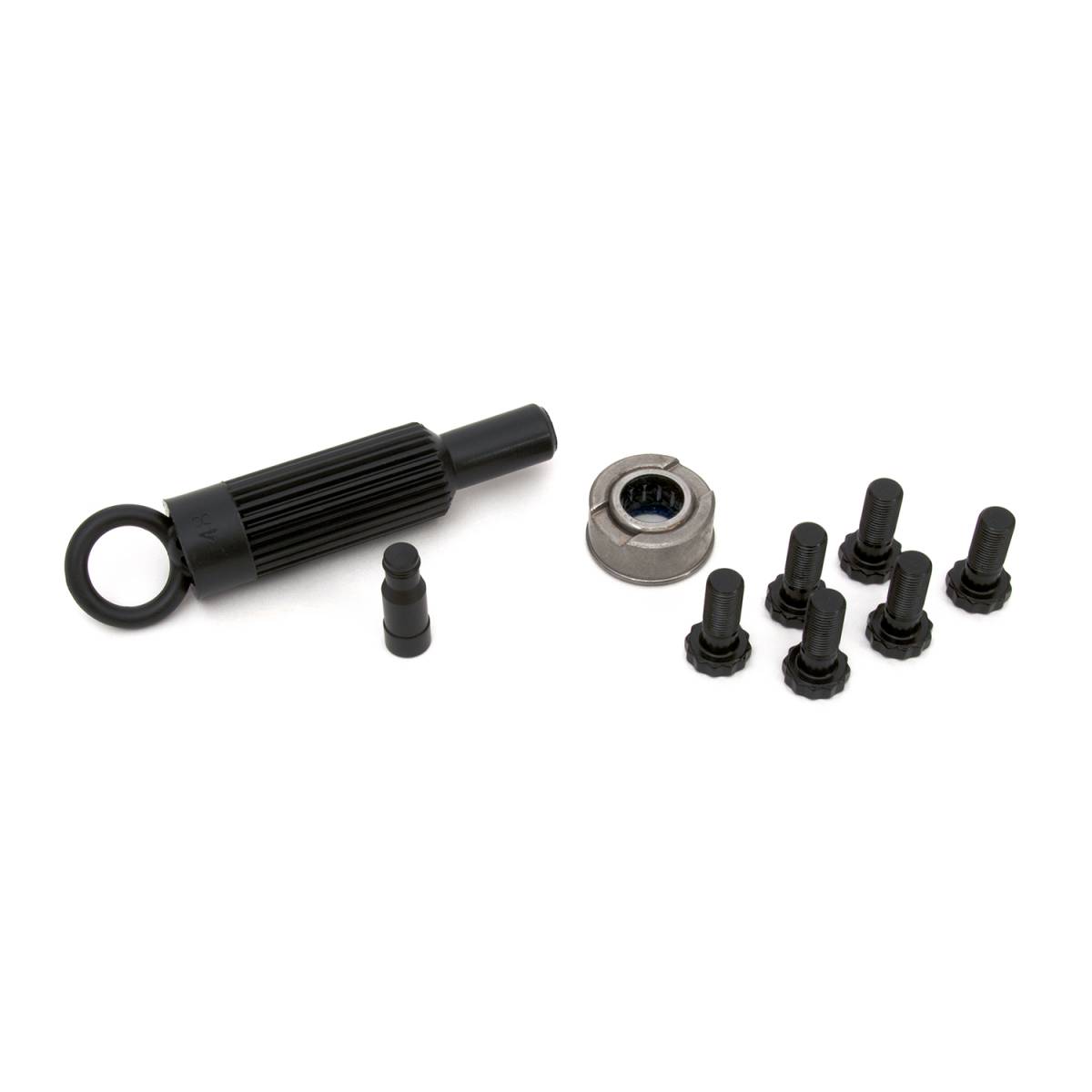

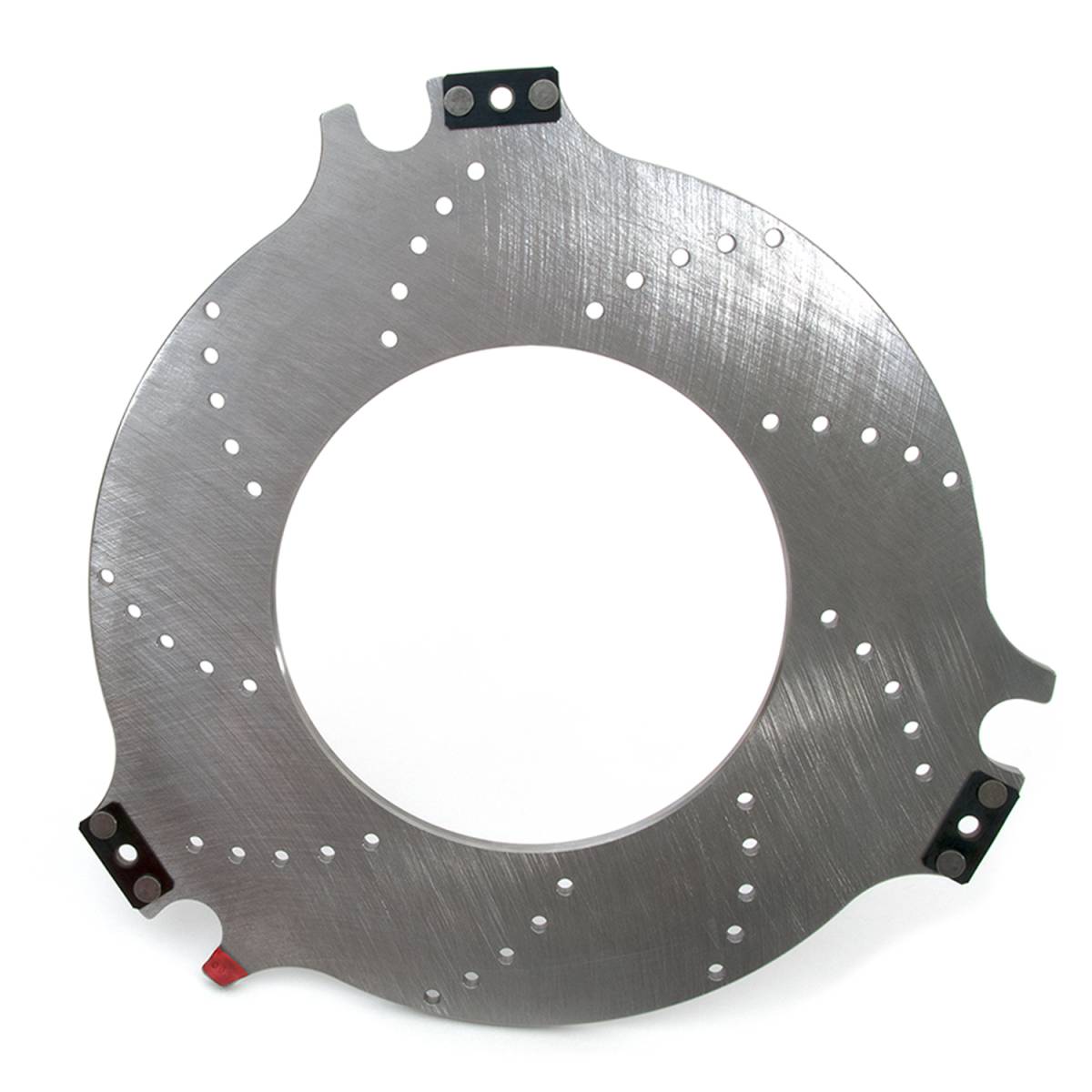

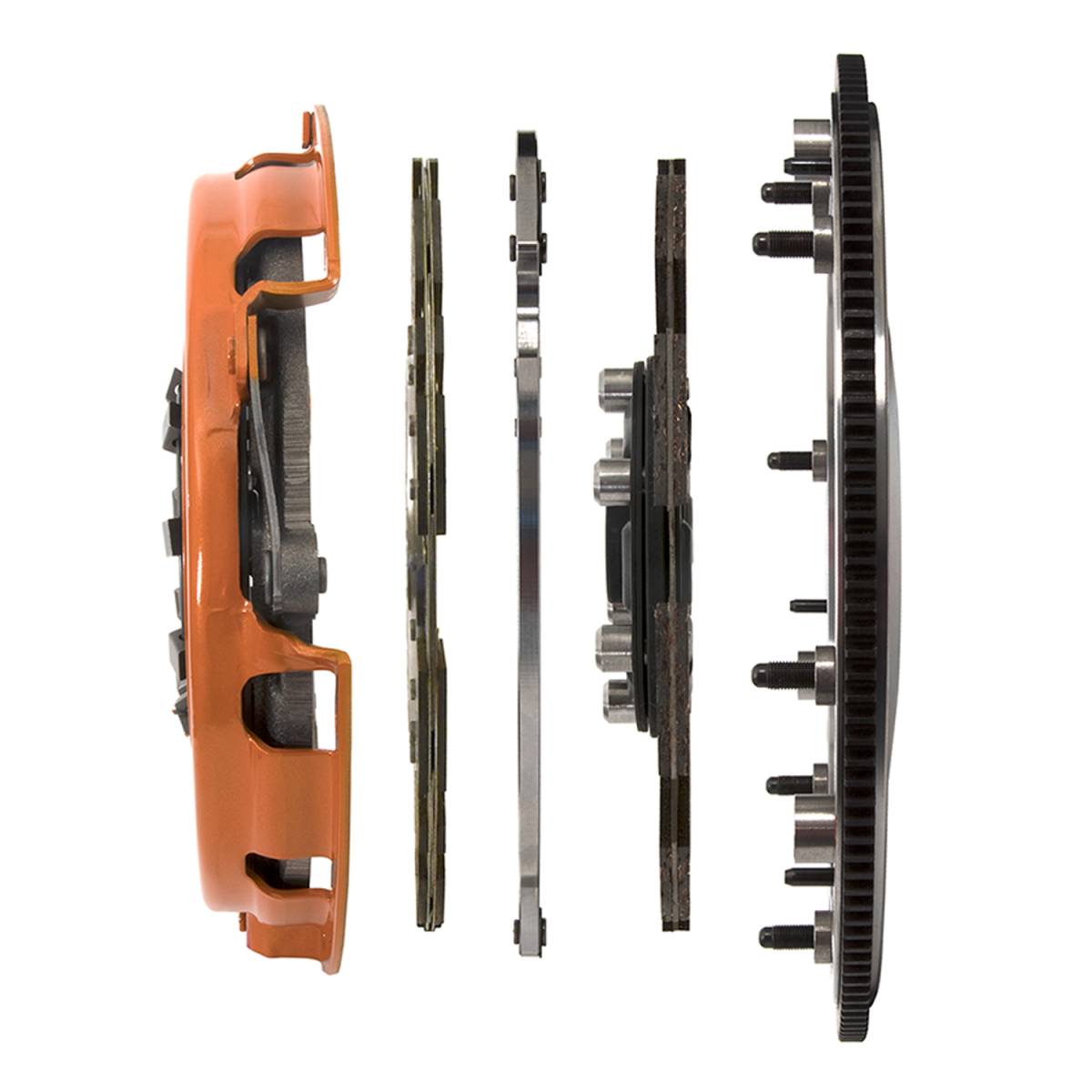

INCLUDES: Cover, Discs, Floater, Flywheel, Hardware, Pilot, Shim, Tool

  • 10.4" Diameter
  • 264.2mm Diameter
  • 1-1/8" x 26 Spline Input Shaft
  • Holds Up To 1300 ft/lbs of Torque
  • Weighs 45.95 lbs

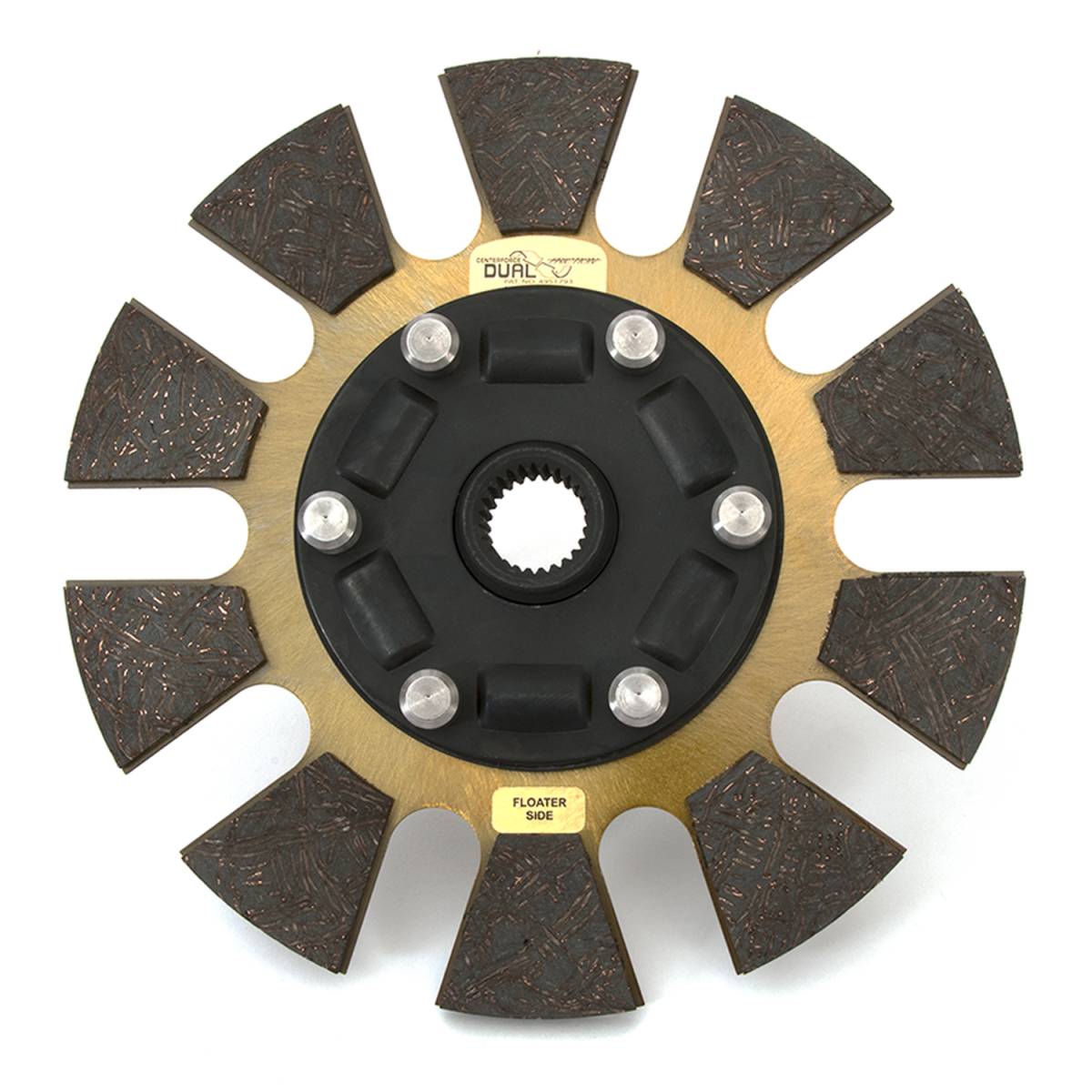

  • Sprung Hub Disc with Organic/Carbon Composite Material

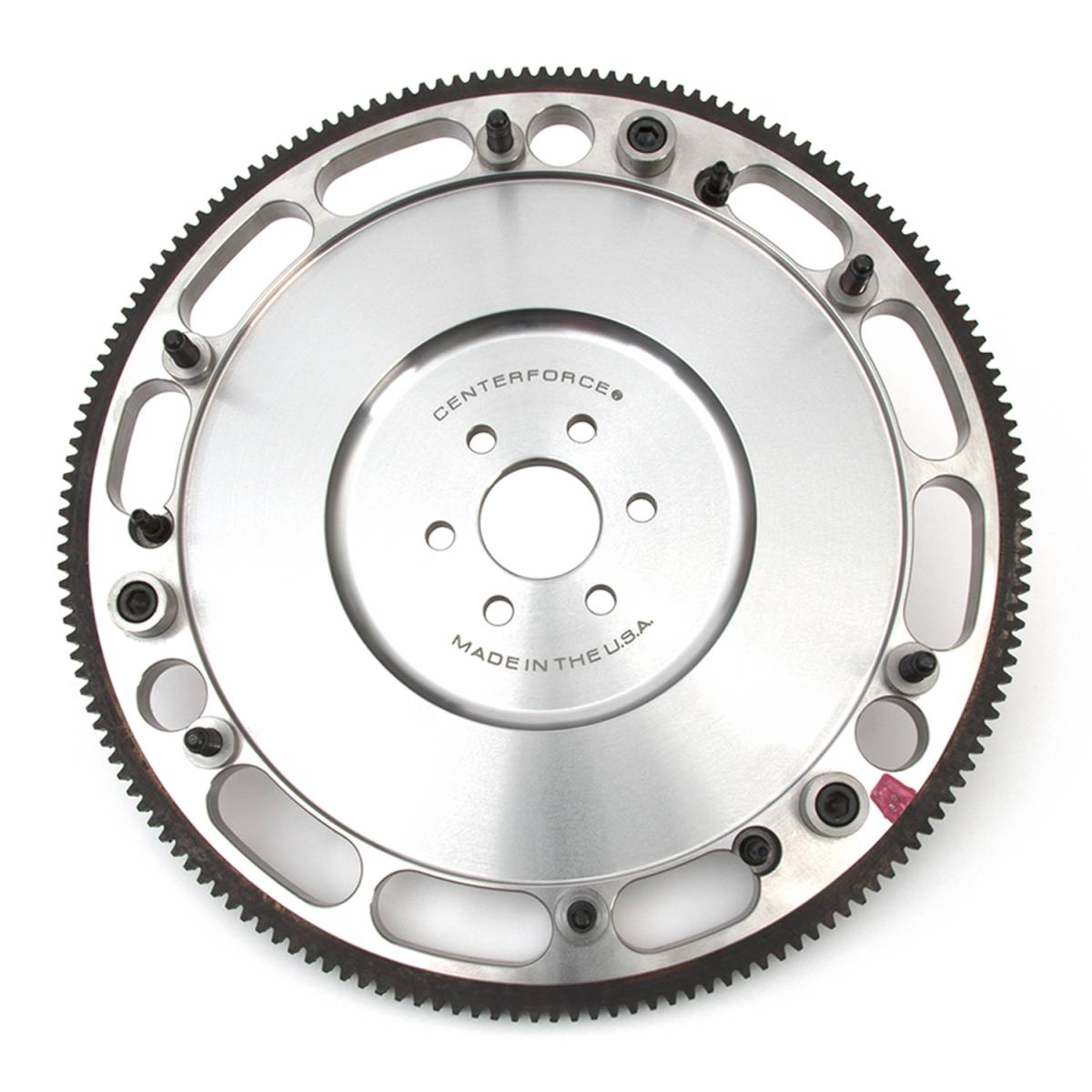

  • 164 Tooth R.Gear, 6 Bolt Crank, and 0 oz Counter Balance
Availability: Most items ship in 1 to 5 days but delays can occur. You will be notified if an item cannot be shipped by the next business day!
Free Ground Shipping
Was: $2271.99
Sale: $1854.03
Save: 18%
Save: $417.96

Starting at $65/mo or 0% APR with

Qty:

WARNING: This product can expose you to chemicals including Nickel compounds and dusts, which are known to the State of California to cause cancer.

For more information, visit www.P65Warnings.ca.gov
Wash hands following installation.

Description

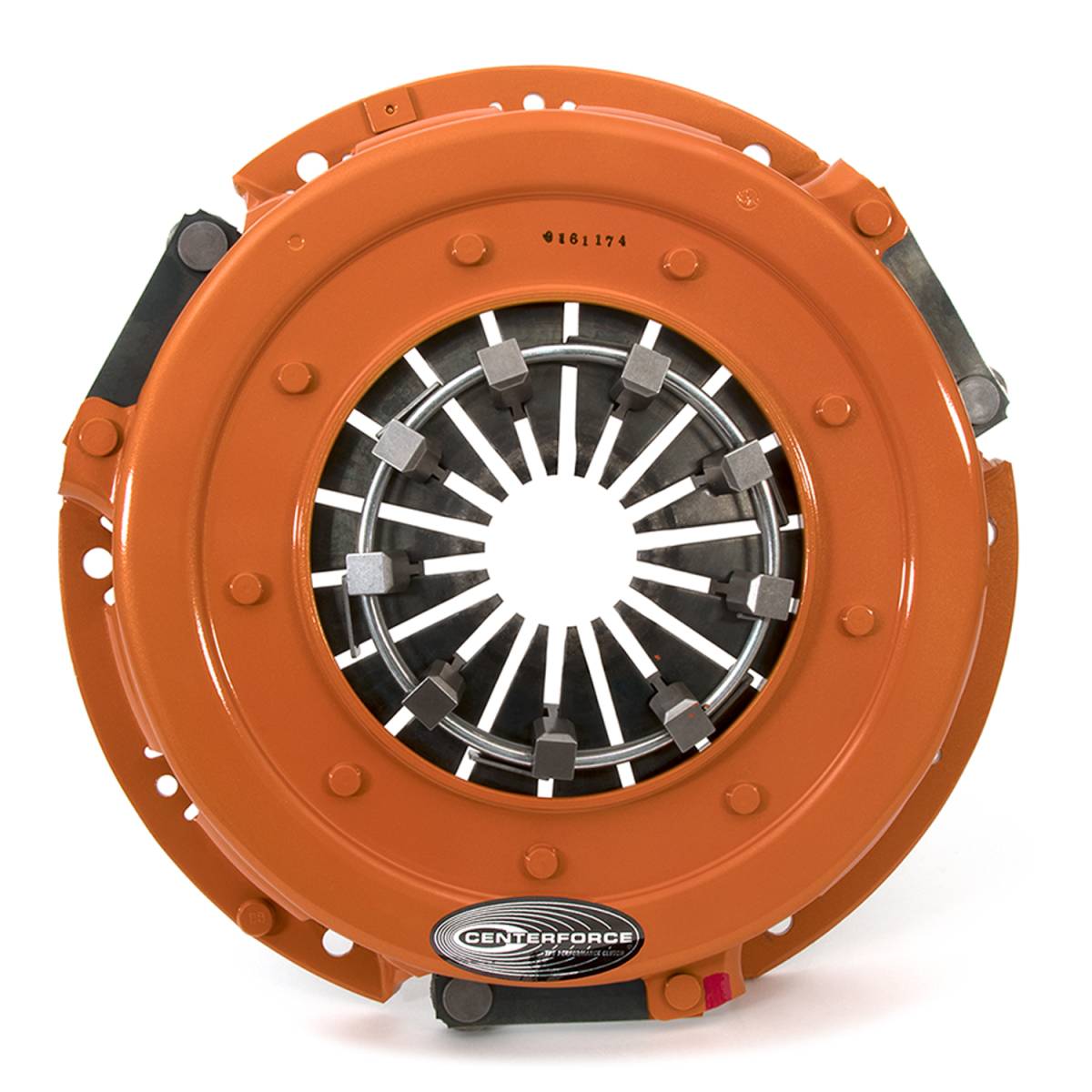

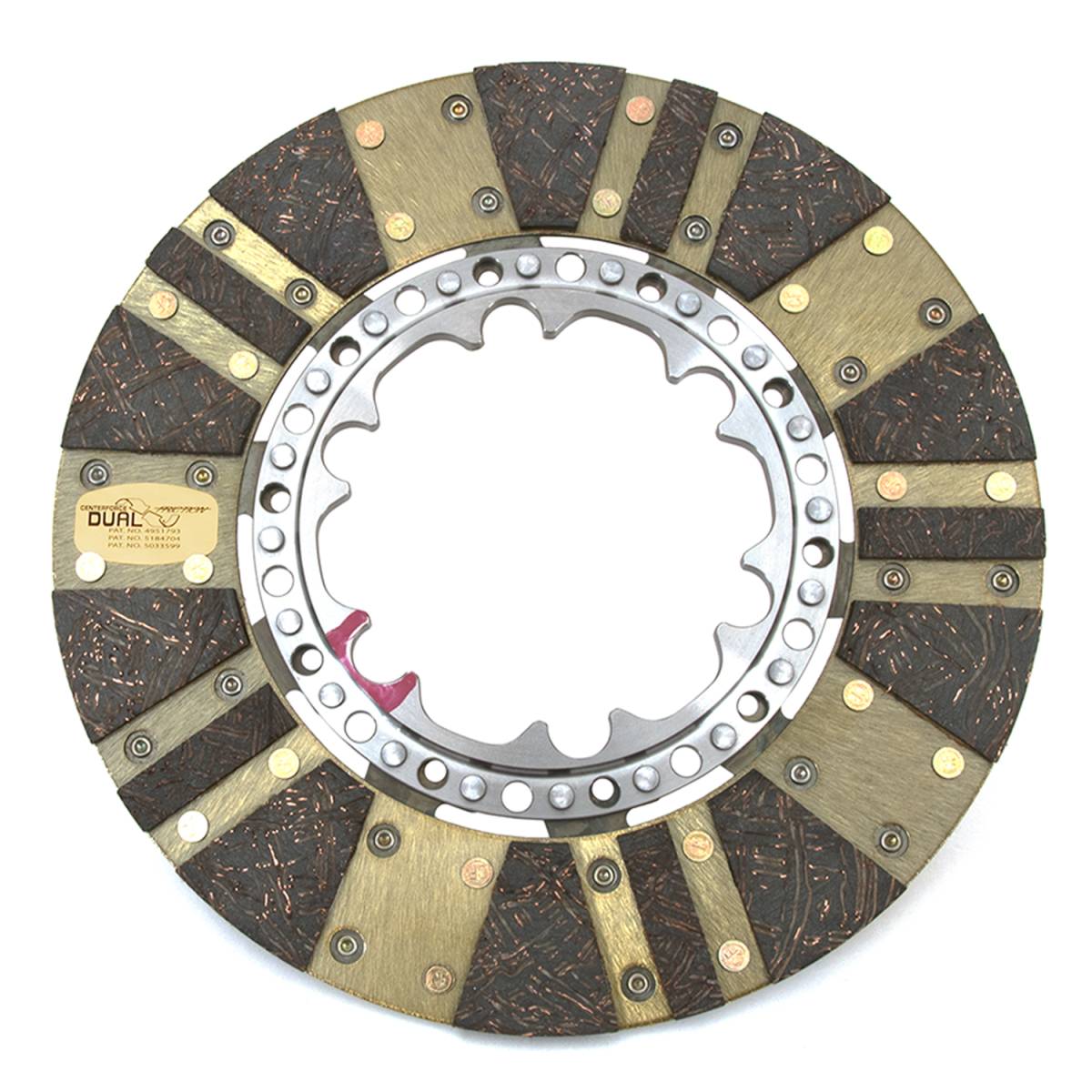

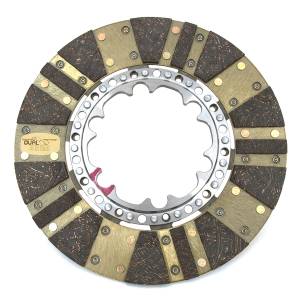

The Centerforce® DYAD DS 10.4" twin disc clutch has been developed for vehicles requiring a holding capacity of 500 to 1300 ft/lbs of torque at the crank. The pressure plate features our patented centrifugal weight system for superior clamp load over stock and our patented ball bearing actuated pressure plate providing light pedal effort. The discs are equipped with organic segmented facings providing increased holding capacity and the sprung/dampened drive disc provides smooth drivability. DYAD DS clutches are equipped with a lightened billet steel flywheel providing low inertia resulting in quicker RPM's. Components are designed, machined and assembled in the USA. DYAD DS clutches are match balanced and ready for installation using the included ARP fasteners.
